TPMS Truck CAN-BUS Receiver 8v1 External Sensor Engineering Vehicle Automatically identification Information Replaces Trailer Standard communication interface support protocol customization (J1939 format)

Short Description:

CAN-BUS Receiver:
PCB copper : 1OZ
PCBA weight: 4.3g±1g
PCB thickness : 1.6mm
Working current: 40mA
Working voltage: DC24V
Reception sensitivity : -97dbm
Working temperature: -40-+85℃
Dimensions : 13.0cm（ length ）*8.0cm（ width ）*3.1cm（height）
Repeater:
Waterproof grade: IP67
Normal current: 4.5mA
Transmit current: <50mA
Transmit power: <10dbm
Operating voltage: ACC24V
Reception sensitivity: -95dbm
Working frequency: 433.92MHz
Operating temperature: -40-90℃
Machine port: Vehicle power input
Power supply mode: Vehicle power
Machine weight(excluding packaging): 120g±3g
Dimensions: 11.7cm(length)*7.9cm(width)*2.2cm(height)

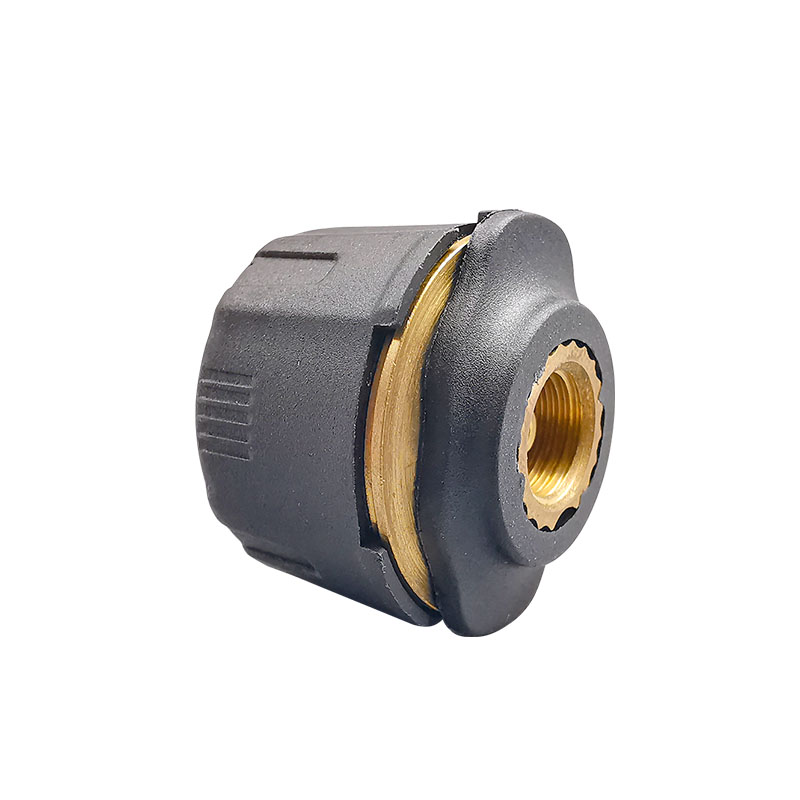

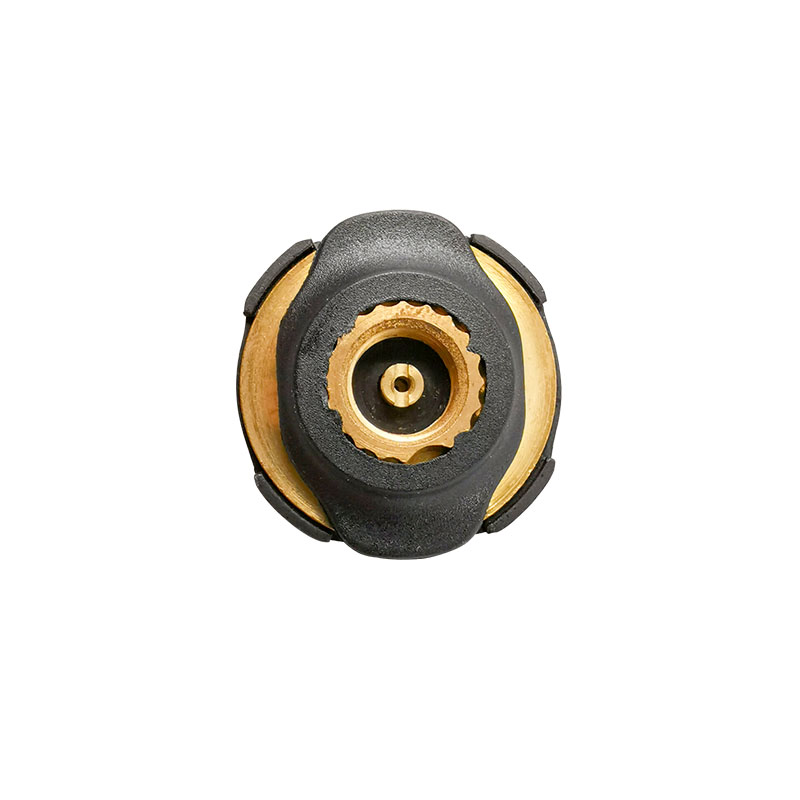

W 8V1 External sensor:
Sleep current: 0.5uA
Battery model: CR1632
Self-test current: 2.2mA
Transmit current: 8.7mA
Transmit power: -10dbm
Battery capacity: 135mAh
Working voltage: 2.1V-3.6V
Metal part material: copper
Transmit frequency: 433.92MHZ
Thread Size: 8V1 internal thread
Power supply mode: Button Battery
Plastic parts material: Nylon + glass fiber
Sensor working temperature: -30℃-90℃
Shell temperature resistance: -50℃-150℃
Machine weight (excluding packaging): 12g±1g

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month
